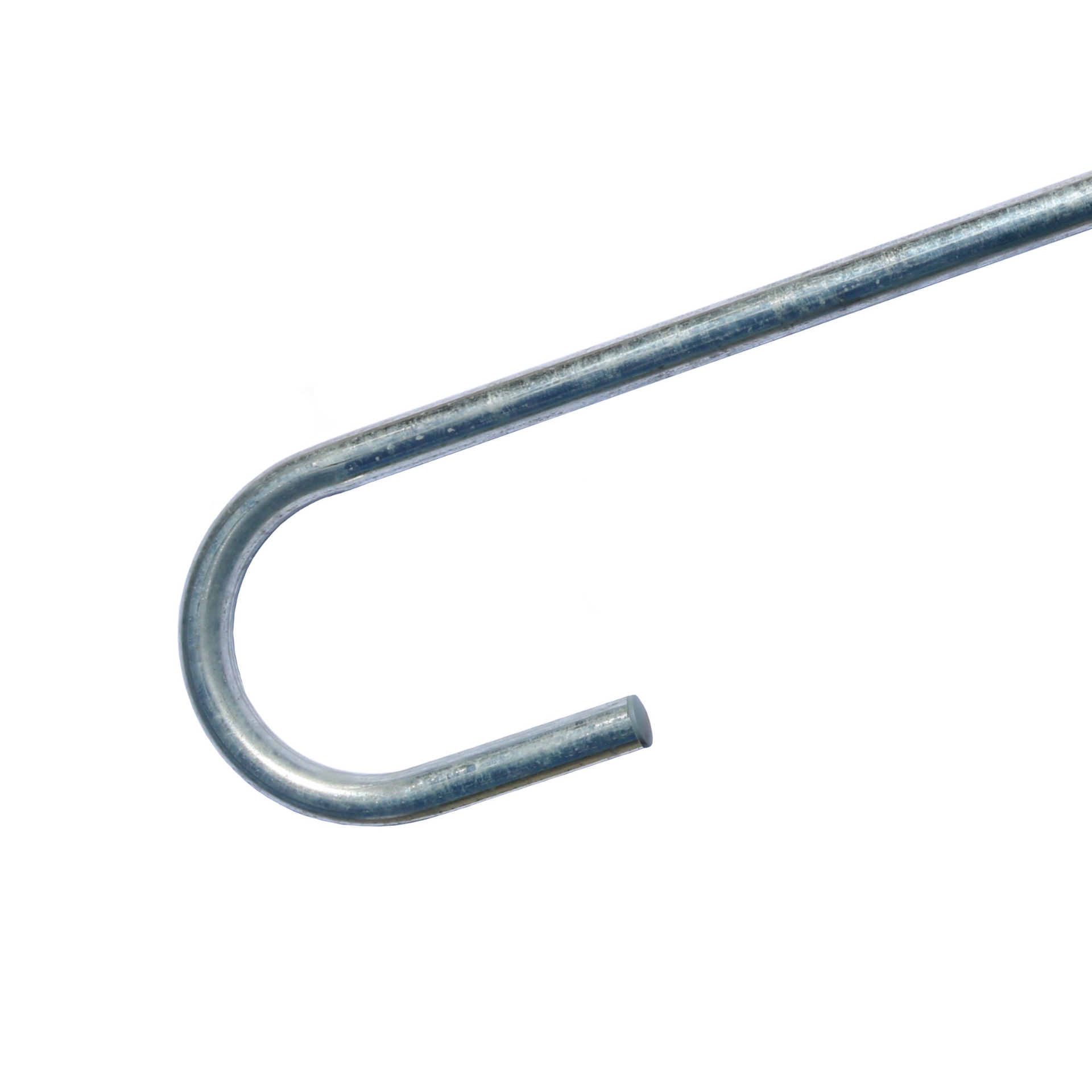

724 C42 DDA Assist Handrail Termination

Code: GI724C42

Disability handrail termination.



Designed to reduce the risk of clothing being caught on the end of handrails when fitted to 746 or 748 saddle type fittings. The 724 is pre-drilled to suit 798 self drilling screws (supplied separately)



This item is supplied with a 133 plastic stop end fitted to one end.



Type 333 aluminium stop end will not fit this product.

$86.39 incl GST
increase decrease

Five different size ranges of galvanized Interclamp handrail fittings are available as shown in the table, hence a suitable size can be selected for any particular application. Interclamps are easily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the handrail tube to be used (48.3mm = 1 ½" nominal bore in this case). Hence a 90° elbow suitable for an 1 ½" nominal bore tube in this example would be denoted as a 125-D48.

Interclamps are designed for use with steel pipe, such as gas and water tube. If you are looking to use aluminium alloy or other tubes with our system, it should be ensured that the outside diameter matches one of those shown in the table below and that they are of a suitable structural strength.

Should you require further guidance on the correct choice of Interclamp size for your particular application or design load specification, please take advantage of our wealth of experience in the selection of steel tubes and clamps gained over many years. If your structure has to comply with a particular client, national or international standard, please specify this in your enquiry.

 SizeTube Nominal BoreTube Outside Diameter
A27¾"26.9 mm
B341"33.7 mm
C421 ¼"42.4 mm
D481 ½"48.3 mm
E602"60.3 mm

Interclamp tube clamp size guide

Image for illustrative purposes only, not drawn to scale.

Products specifications
Attribute nameAttribute value
Interclamp SizeC42
FinishGalvanized
