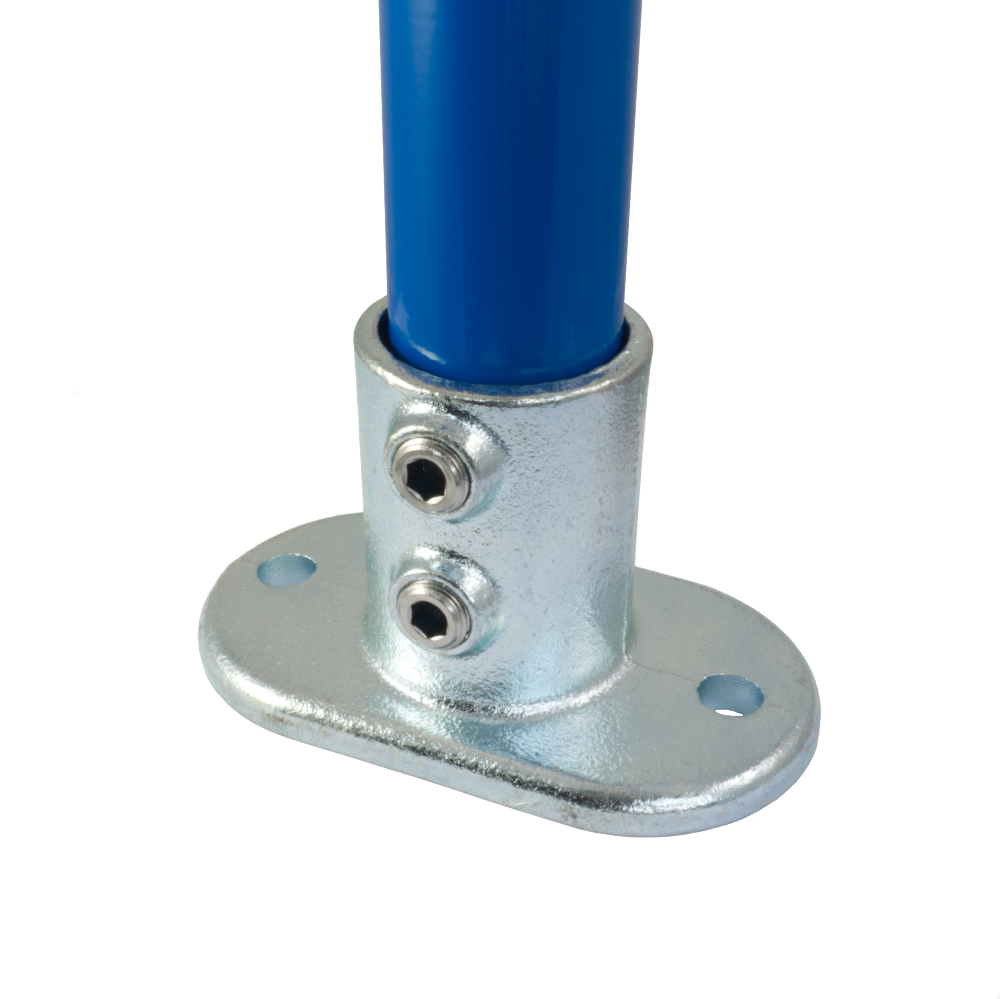

Interclamp 132 - Railing Base Flange

Base flange, usually used for uprights on level sites. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. Type 132-D48 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).

Warning: To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.



Product Data & Dimensions



Sizea (mm)c (mm)d (mm)e (mm)Hole Dia (mm)Weight (Kg)Box Qty*
  A27  60  105  76  52  11  0.398  80
  B34  71  127  89  62  15  0.629  45
  C42  84  139  101  72  15  1.926  30
  D48  152  152  114  86  15  1.104  23
  E60  104  165  127  96  18  1.571  17



Please Choose Required Size Below:

Availability: In stock
  • *
$0.00 incl GST
decrease increase

Five different size ranges of galvanized Interclamp handrail fittings are available as shown in the table, hence a suitable size can be selected for any particular application. Interclamps are easily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the handrail tube to be used (48.3mm = 1 ½" nominal bore in this case). Hence a 90° elbow suitable for an 1 ½" nominal bore tube in this example would be denoted as a 125-D48.

Interclamps are designed for use with steel pipe, such as gas and water tube. If you are looking to use aluminium alloy or other tubes with our system, it should be ensured that the outside diameter matches one of those shown in the table below and that they are of a suitable structural strength.

Should you require further guidance on the correct choice of Interclamp size for your particular application or design load specification, please take advantage of our wealth of experience in the selection of steel tubes and clamps gained over many years. If your structure has to comply with a particular client, national or international standard, please specify this in your enquiry.

 SizeTube Nominal BoreTube Outside Diameter
A27¾"26.9 mm
B341"33.7 mm
C421 ¼"42.4 mm
D481 ½"48.3 mm
E602"60.3 mm

Interclamp tube clamp size guide

Image for illustrative purposes only, not drawn to scale.
