Interclamp 173M - Single Swivel Combination Male Part

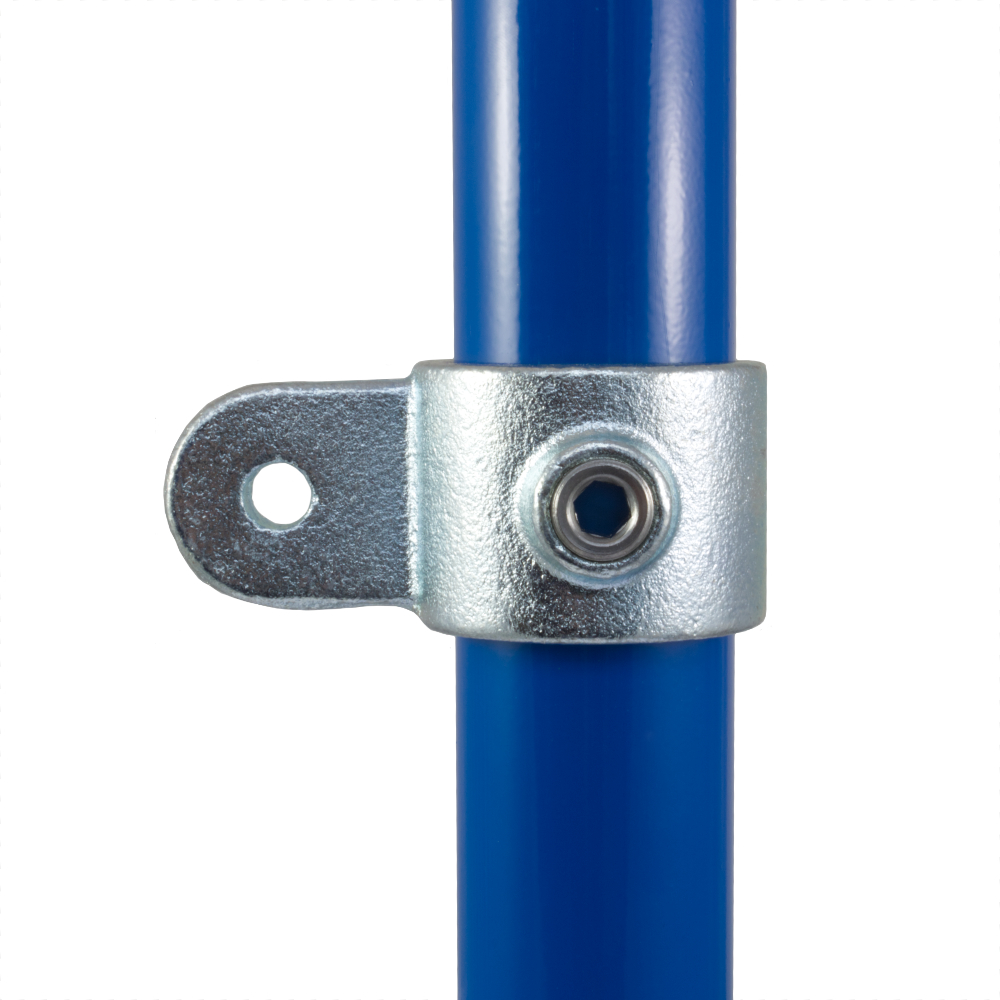

Single lugged fitting. Can be supplied pre-assembled to type 173F to form type 173. Dependent on load requirements, this fitting may sometimes be used to fix flat sheets to tubes. The tube cannot be joined within the fitting.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.



Product Data & Dimensions



Sizeb (mm)Weight (Kg)Box Qty*
  A27  40  0.21  180
  B34  43.5  0.266  150
  C42  48  0.325  105
  D48  53  0.375  84
  E60  60  0.494  42



Please Choose Required Size Below:



  • *
$0.00 incl GST
decrease increase

Five different size ranges of galvanized Interclamp handrail fittings are available as shown in the table, hence a suitable size can be selected for any particular application. Interclamps are easily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the handrail tube to be used (48.3mm = 1 ½" nominal bore in this case). Hence a 90° elbow suitable for an 1 ½" nominal bore tube in this example would be denoted as a 125-D48.

Interclamps are designed for use with steel pipe, such as gas and water tube. If you are looking to use aluminium alloy or other tubes with our system, it should be ensured that the outside diameter matches one of those shown in the table below and that they are of a suitable structural strength.

Should you require further guidance on the correct choice of Interclamp size for your particular application or design load specification, please take advantage of our wealth of experience in the selection of steel tubes and clamps gained over many years. If your structure has to comply with a particular client, national or international standard, please specify this in your enquiry.

 SizeTube Nominal BoreTube Outside Diameter
A27¾"26.9 mm
B341"33.7 mm
C421 ¼"42.4 mm
D481 ½"48.3 mm
E602"60.3 mm

Interclamp tube clamp size guide

Image for illustrative purposes only, not drawn to scale.
