Interclamp 131 - Wall Flange

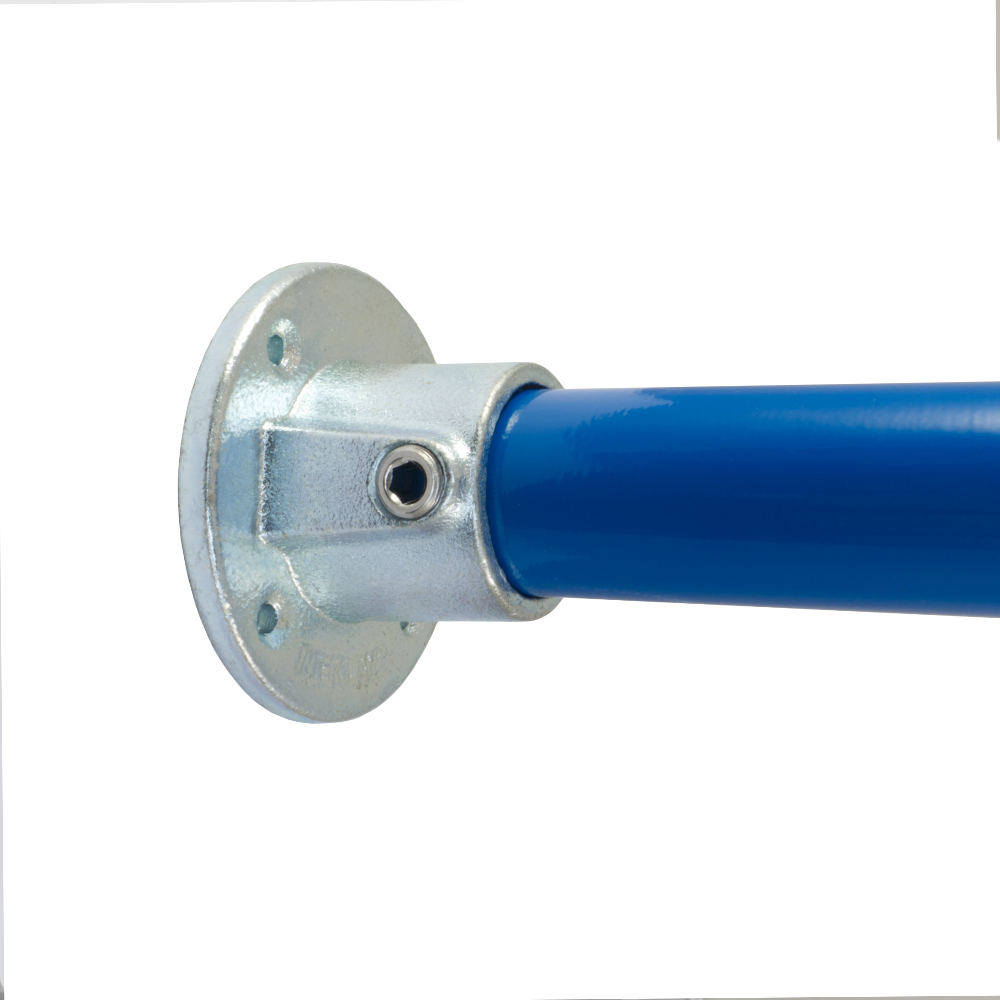

Positional fixing flange which is often used where rails meet walls on level sites.

Warning: This Interclamp fitting is not recommended as a baseplate to support handrailing, guardrailing, parapets, balustrades or other structures. Please use type 132 as an alternative.



Product Data & Dimensions



Sizeb (mm)c (mm)d (mm)Hole Dia (mm)Weight (Kg)Box Qty*
  A27  42  83  59  7  0.318  98
  B34  48  89  65  7  0.47  70
  C42  51  102  76  7  0.632  48
  D48  59  114  88.5  7  0.915  32
  E60  64  128  97  7  1.011  21



Please Choose Required Size Below:

  • *
$0.00 incl GST
decrease increase

Five different size ranges of galvanized Interclamp handrail fittings are available as shown in the table, hence a suitable size can be selected for any particular application. Interclamps are easily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the handrail tube to be used (48.3mm = 1 ½" nominal bore in this case). Hence a 90° elbow suitable for an 1 ½" nominal bore tube in this example would be denoted as a 125-D48.

Interclamps are designed for use with steel pipe, such as gas and water tube. If you are looking to use aluminium alloy or other tubes with our system, it should be ensured that the outside diameter matches one of those shown in the table below and that they are of a suitable structural strength.

Should you require further guidance on the correct choice of Interclamp size for your particular application or design load specification, please take advantage of our wealth of experience in the selection of steel tubes and clamps gained over many years. If your structure has to comply with a particular client, national or international standard, please specify this in your enquiry.

 SizeTube Nominal BoreTube Outside Diameter
A27¾"26.9 mm
B341"33.7 mm
C421 ¼"42.4 mm
D481 ½"48.3 mm
E602"60.3 mm

Interclamp tube clamp size guide

Image for illustrative purposes only, not drawn to scale.
