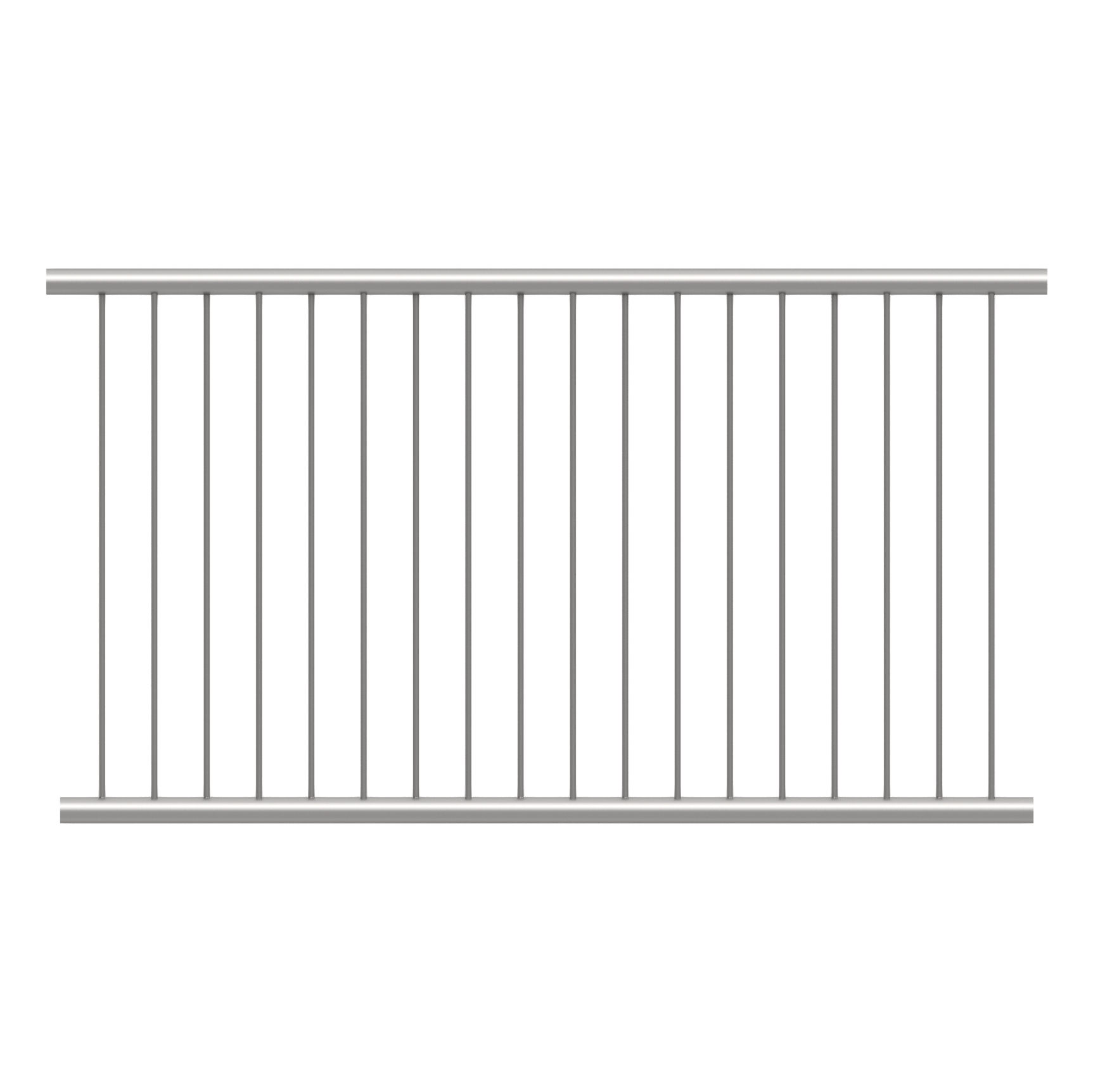

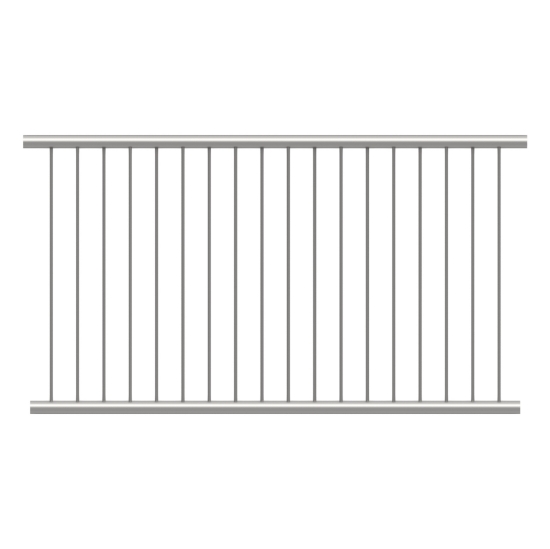

Interclamp 392 - Pedestrian Barrier Panel

Designed to integrate fully with the Interclamp system, to provide rapid construction of pedestrian control structures. Top and bottom rails are 1 1/2” nominal bore (48.3mm od) tube with 12mm solid vertical bars. To improve visibility for drivers through the barriers, the bars are staggered. The barriers meet the infill requirements of Sections 2.4.1 and 2.4.2 of BS 7818:1995 (Pedestrian Restraint Systems in Metal). Custom sizes are also available on request.

Standard Sizes
900mm wide x 1000mm high
1800mm wide x 1000mm high

Product Data & Dimensions

SizeWeight (Kg)Box Qty*
D48 900mm141
D48 1800mm141
